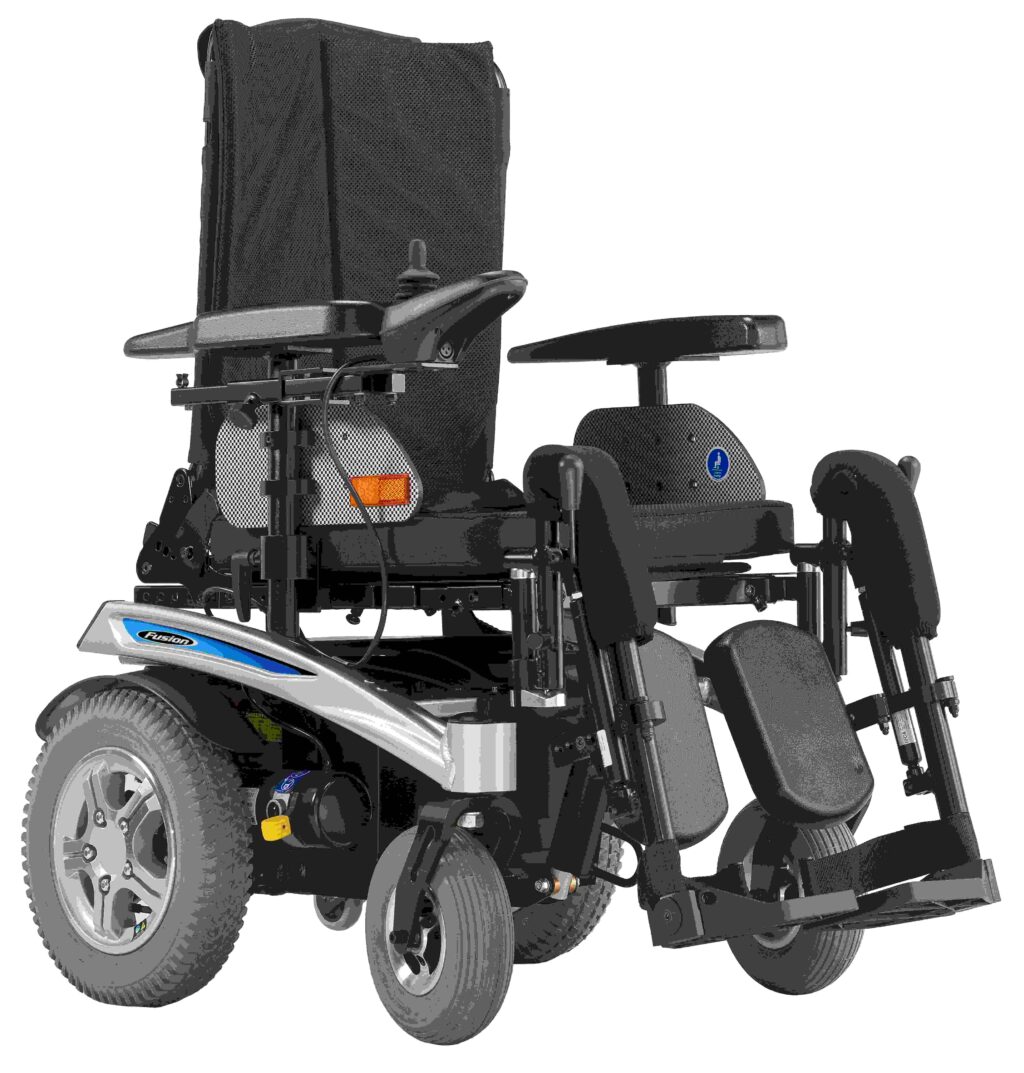

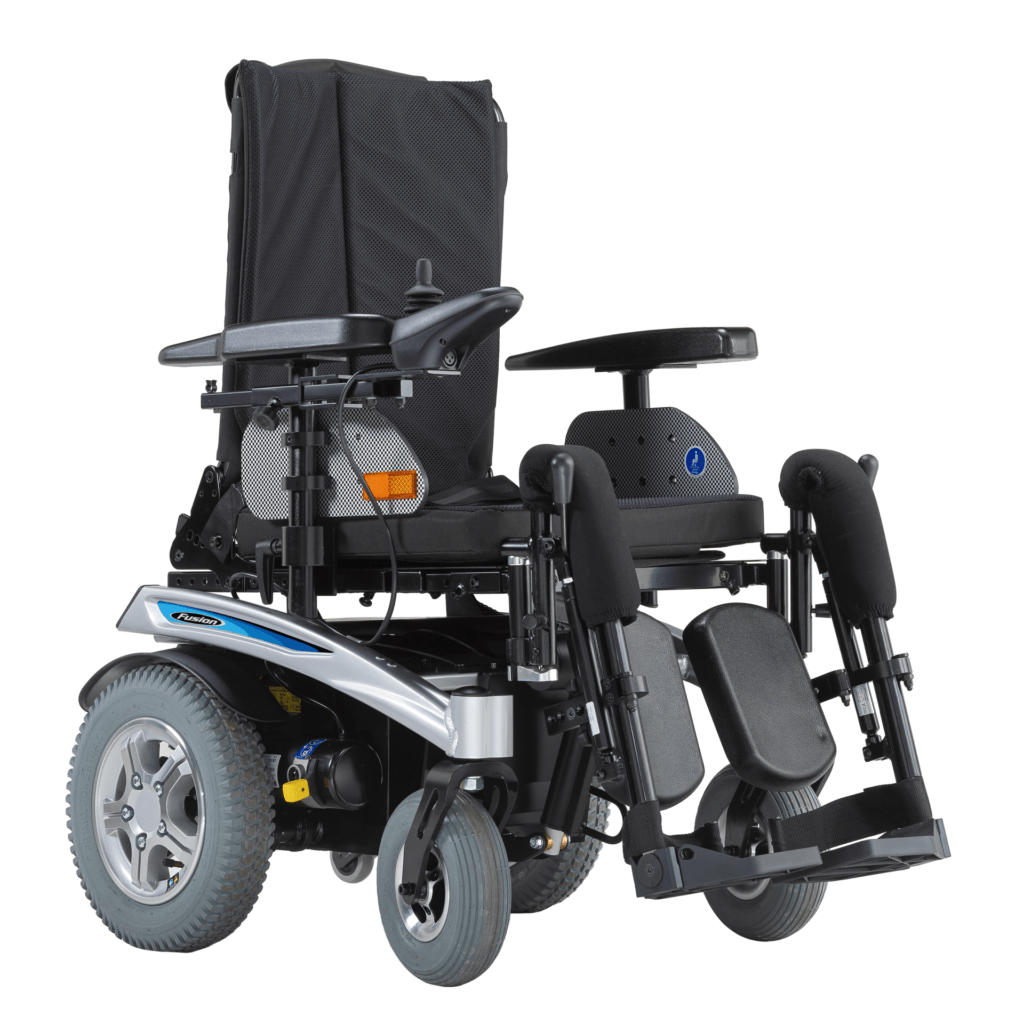

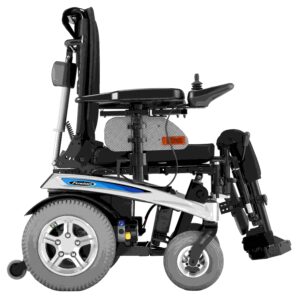

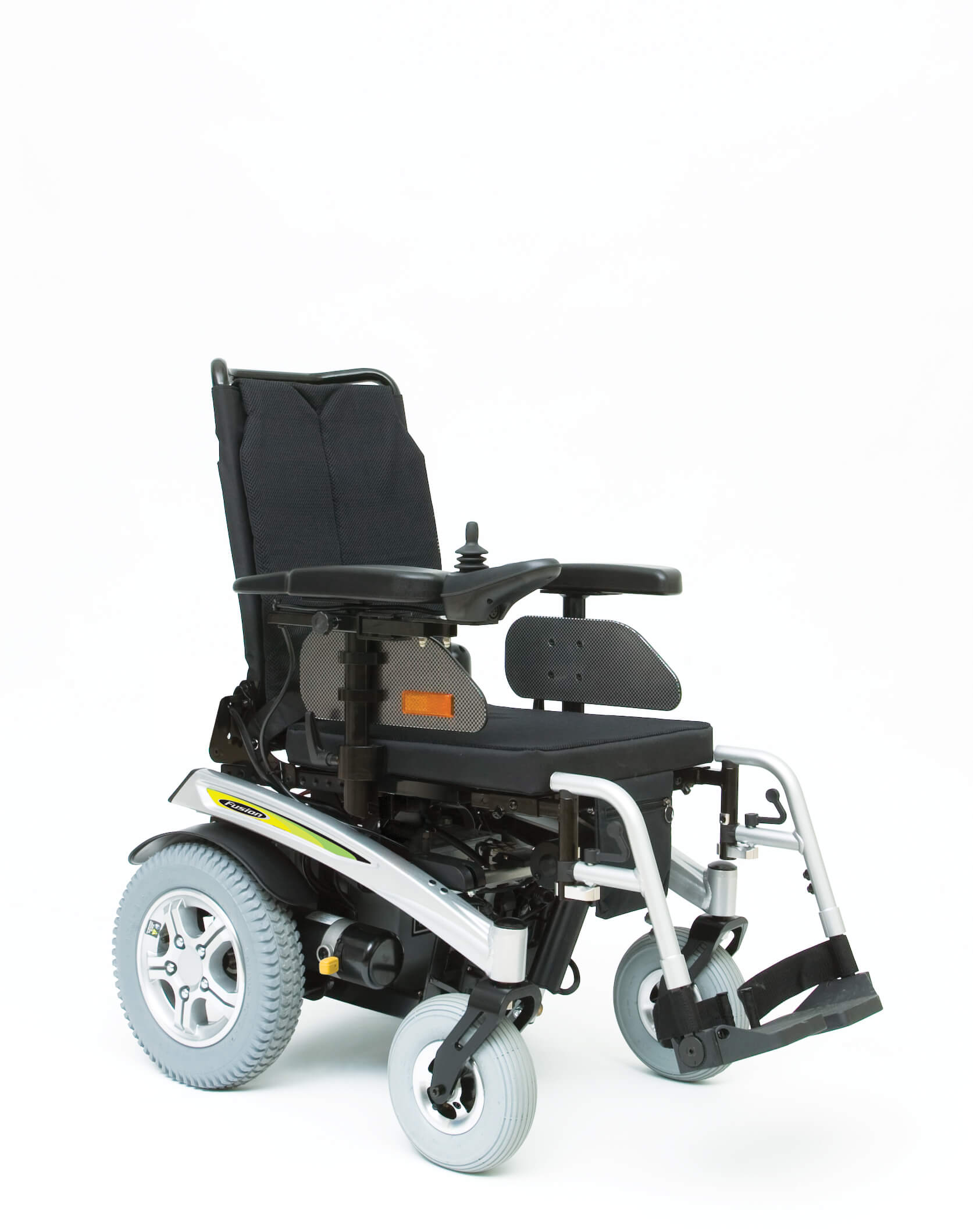

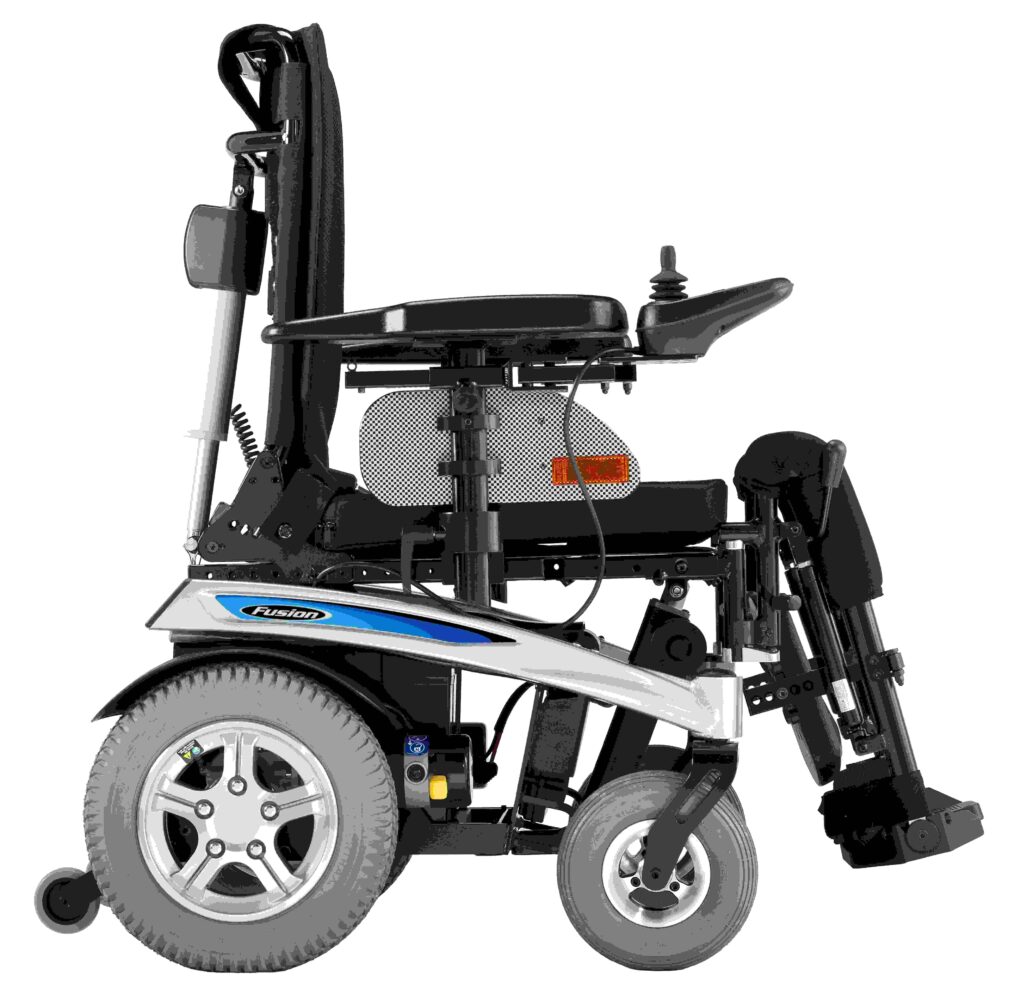

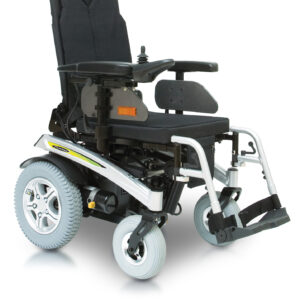

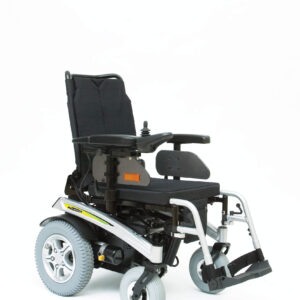

Fusion
Range up to 25 km
Up to 6,4 km/h
74 kg
MDR Class I (2017/745/EU) Medical Device
Rear-wheel drive with high functionality
The Fusion rear-wheel drive power chair delivers aggressive, terrain-gripping torque and is available with an optional top speed of up to 10 km/h. The innovative, compact design of the Fusion makes it highly manoeuvrable in tight spaces without sacrificing traditional rear-wheel-drive performance.
Specifications
| Weight capacity | 136 kg |
|---|---|
| Maximum speed | Up to 10 km/h |
| Per Charge Range | 25 km |
| Ground clearance | 114 mm |
| Overall length | 890 mm |
| Overall width | 635 mm |
| Turning radius | 533 mm |
| Standard controls | PG VR2 controller |
| Total weight (without batteries) | 73,9 kg |
| Seating | Tension-adjustable, sling back plus solid seat pan |
| Drive wheels | 14" pneumatic |
| Castor wheels | 9" pneumatic |
| Drive train | Rear-wheel drive |
| Batteries | Two 12-volt, deep cycle Size: 2x 50 AH |
| Battery weight (each) | 17 kg |
| Brakes | Intelligent braking, electromagnetic regenerative, disc park brake |
Overview
Download our
product brochure
Download our product brochure here to get an overview of our product range!
Features
- Narrow 635 mm width and compact 890 mm length
- Outstanding tight space maneuverability
- Maximum speed up to 10 km/h
- High-performance, high-efficiency motor package
- Uniquely designed seating system is integrated with the base
- Emark lighting package standard
- Swing-away joystick
